R1 000,00 RRP (Excl. VAT)

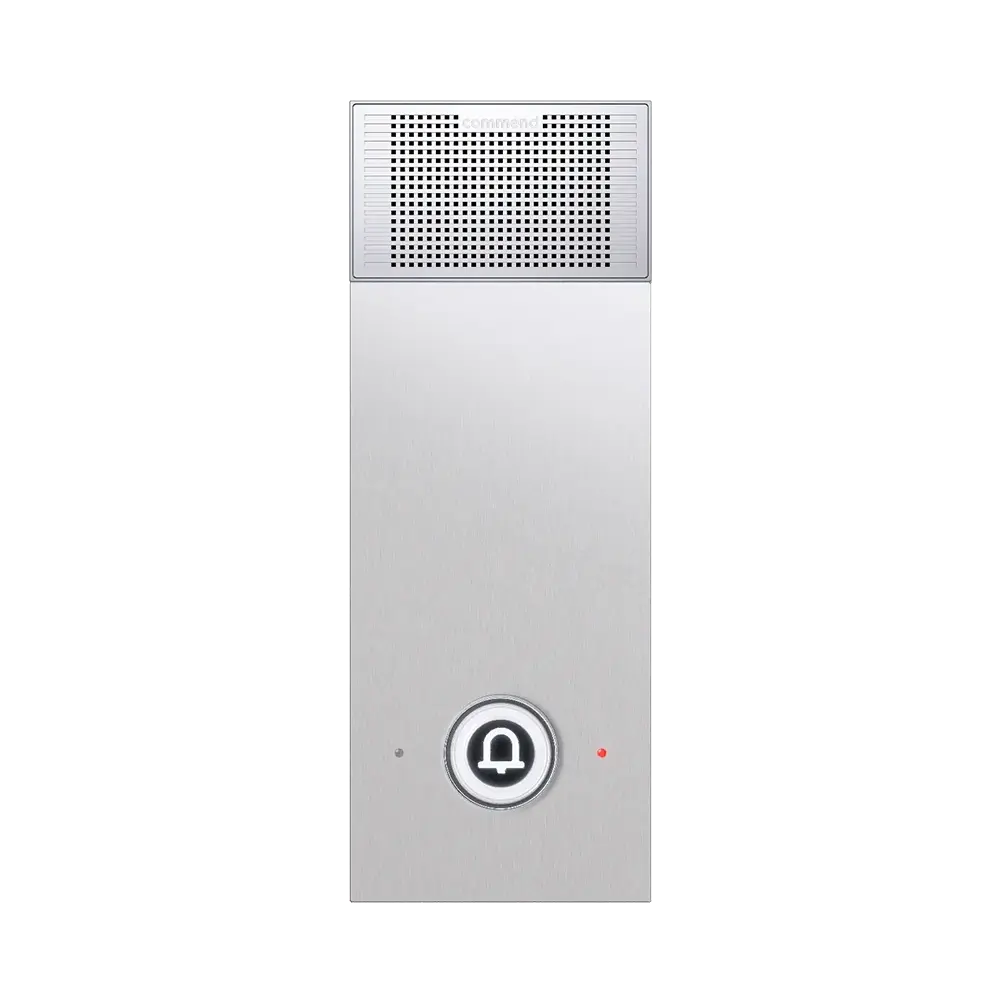

Commend OD1-V | Compact IP Video Intercom Station
The Commend OD1-V is a high-performance, compact IP video intercom station designed to provide secure visual verification and clear audio communication in a space-saving form factor. It features an integrated high-resolution wide-angle camera that delivers sharp video even in challenging lighting conditions. Built with a robust, vandal-resistant front plate, the OD1-V is ideal for installations in narrow profiles such as door frames and bollards.
The station utilizes OpenDuplex® technology and 16 kHz HD Voice for superior audio intelligibility. With hybrid support for SIP and IoIP® protocols, it seamlessly integrates into modern security networks, providing a comprehensive solution for visitor management and access control.
Key Technical Specifications
| Feature | Specification |
| Model Number | OD1-V |
| Camera | Integrated Wide-Angle Color Camera |
| Audio Quality | 16 kHz HD Voice, OpenDuplex® |
| Protocol | Hybrid (SIP / IoIP) |
| Video Performance | High-resolution with excellent light sensitivity |
| Microphone | Electret condenser microphone |
| Amplifier | Integrated Class-D (2.5 W) |
| Protection | Vandal-resistant and weather-protected |
| Inputs/Outputs | 2 Inputs / 2 Relay Outputs |
| Power Supply | PoE (IEEE 802.3af) |
Project Application
The OD1-V is optimized for compact visual security and access control:
-
Secure Building Entrances: Provides reliable video verification for visitors at narrow entry points or secondary doors.
-
Gate and Barrier Systems: Ideal for integration into bollards for vehicle access control, allowing operators to see and speak with drivers.
-
Service & Help Points: Perfect for small-footprint assistance kiosks in retail or public spaces where visual confirmation is required.
