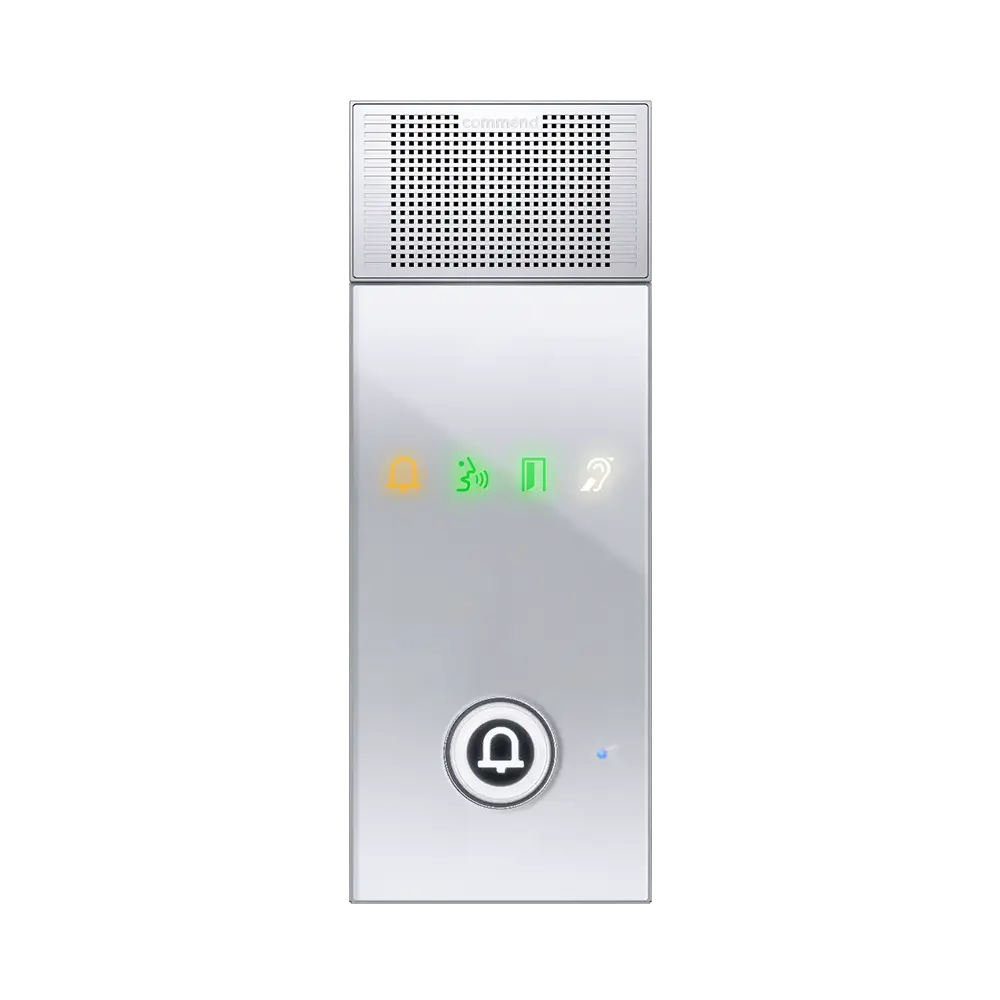

Commend OD1 | Compact IP Intercom Station
The Commend OD1 is a compact, high-performance IP intercom station designed for space-saving installations without compromising on security or communication quality. Built with a robust, vandal-resistant front plate, it is ideal for mounting in narrow spaces like door frames or bollards. The OD1 features Commend’s signature OpenDuplex® technology and 16 kHz HD Voice, providing exceptionally clear speech intelligibility even in loud outdoor environments.
This station supports standard SIP and IoIP® protocols, ensuring seamless integration into diverse network architectures. With its high-quality microphone and powerful integrated speaker, the OD1 provides reliable, hands-free communication for access control, emergency points, and service desks.
Key Technical Specifications
| Feature | Specification |
| Model Number | OD1 |
| Audio Quality | 16 kHz HD Voice, OpenDuplex® |
| Protocol | Hybrid (SIP / IoIP) |
| Microphone | Electret condenser microphone |
| Amplifier | Integrated Class-D (2.5 W) |
| Protection | Vandal-resistant, weather-protected |
| Inputs/Outputs | 2 Inputs / 2 Relay Outputs |
| Power Supply | PoE (IEEE 802.3af) |
| Dimensions | Approx. 130 x 130 x 40 mm (depending on housing) |
Project Application
The OD1 is optimized for compact and high-reliability communication:
-
Access Control Points: Perfectly suited for installation in gate bollards and narrow door frames at corporate or industrial entrances.
-
Elevator Cabins: Provides clear, hands-free emergency communication within confined elevator environments.
-
Parking Terminals: Ideal for integration into barrier systems and pay stations for customer assistance and security.
