R1 000,00 RRP (Excl. VAT)

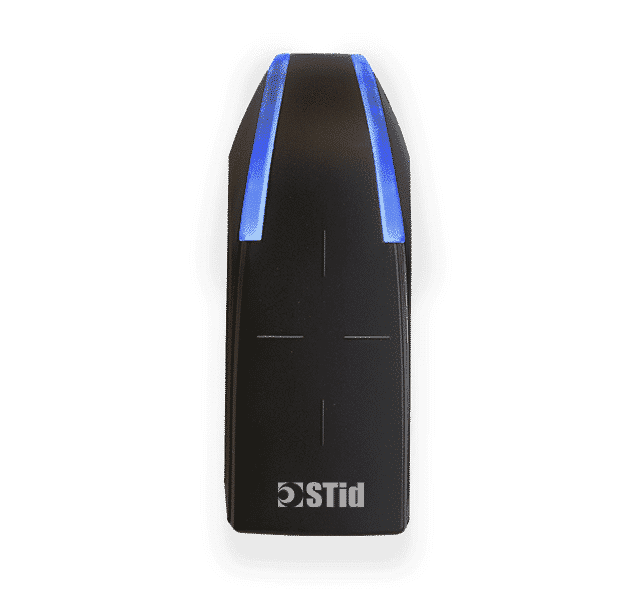

The STid ARC1 Architect® One is a high-security, ultra-slim RFID mullion reader designed for environments where mounting space is at a premium. Its sleek 42mm-wide profile makes it the perfect choice for installation on narrow door frames, aluminum profiles, or within sliding door tracks.
This specific configuration supports CSN (Chip Serial Number) and MIFARE® Classic Sector read-only functionality. Built on STid’s award-winning Architect® platform, the ARC1 is engineered for extreme durability and security. It features a reinforced IK10 vandal-proof structure and is IP65 weatherproof, ensuring reliable performance in both indoor and outdoor settings. The reader also incorporates a patented accelerometer-based tamper detection system that protects sensitive data and keys by triggering an alert if the unit is removed from its mounting surface. This model comes pre-wired with a 3m cable and connector for simplified installation via a TTL interface.
Key Technical Specifications
| Feature | Specification |
| Model Number | ARC1 |
| Technologies | CSN & MIFARE® Classic (Sector Read-Only) |
| Operating Frequency | 13.56 MHz |
| Interface | TTL |
| Connectivity | 3m pre-wired cable with connector |
| Protection Rating | IP65 (Weatherproof) / IK10 (Vandal-resistant) |
| Dimensions | 110 x 42 x 22 mm (4.33″ x 1.65″ x 0.86″) |
| Tamper Detection | Accelerometer-based pull-detection system |
| Operating Temp | -30°C to +70°C |
Project Application
The ARC1 is specifically tailored for narrow-frame commercial security and high-traffic infrastructure:
-
Narrow Frames: Specifically designed for modern glass-and-aluminum office door frames.
-
Perimeter Access: Ideal for turnstiles and outdoor gates where a small footprint is required without compromising on vandal resistance.
-
Elevator Integration: Slim enough to be integrated into interior lift control panels or external call stations.
