The STid SE8M is an advanced expansion module that adds multi-protocol 125 kHz capability to Architect® and Architect® Blue readers. While the standard SE8 module focuses on EM and HID® Prox, the SE8M is a “Multi-technology” variant designed to handle a wider array of legacy proximity protocols. This makes it the definitive tool for facilities management and security integrators tasked with consolidating diverse, older badge populations into a single, unified access control system.

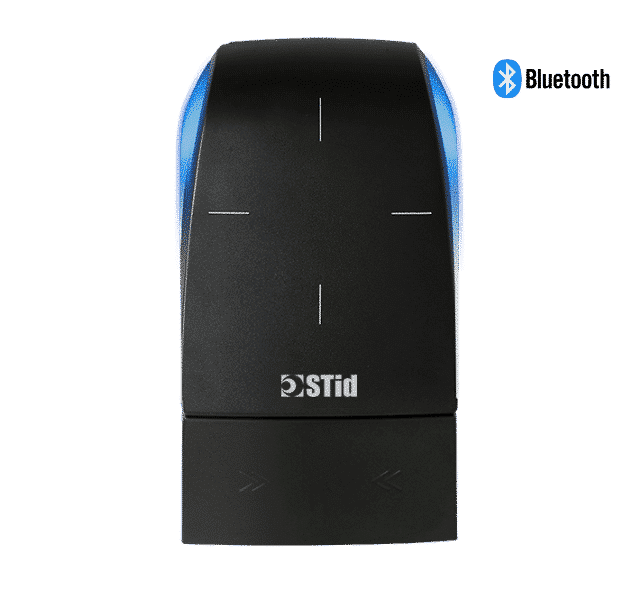

When integrated with an Architect® Blue reader, the SE8M allows for a “triple-technology” approach: legacy 125 kHz proximity, modern 13.56 MHz smart cards (MIFARE® DESFire® EV3), and Bluetooth® / NFC mobile credentials. This enables a seamless, non-disruptive migration path, allowing the hardware to be modernized without forcing a site-wide re-badging event. The module fits internally within the modular Architect® housing, maintaining the reader’s sleek aesthetic and IP65/IK10 environmental protections.

Key Technical Specifications

Project Application

The SE8M module is specifically intended for large-scale, complex infrastructure upgrades:

• Enterprise Consolidation: Perfect for organizations that have acquired multiple sites with different legacy 125 kHz card formats and need a single reader type to support them all.

• Phased Mobile Adoption: Allows for the immediate deployment of Bluetooth®-ready readers while ensuring that no legacy cardholders are locked out during the transition period.

• High-Security Migration: Facilitates the move from unencrypted 125 kHz protocols to hardware-encrypted DESFire® EV3 without interrupting daily operations.
