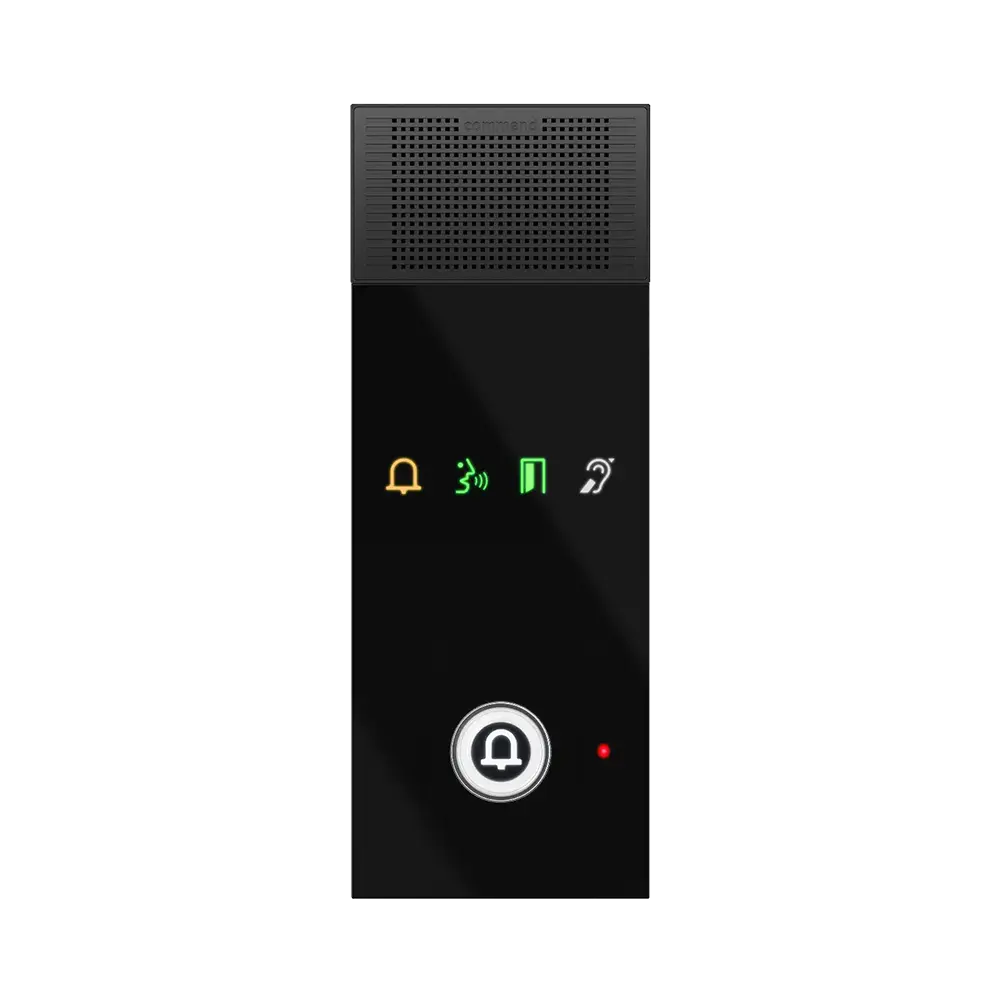

Commend OD1 B | Compact IP Intercom Station – Black Edition
The Commend OD1 B is a sleek, black-edition compact IP intercom station designed for high-performance communication in modern architectural and security environments. Engineered to fit into narrow spaces such as door frames, bollards, and specialized housings, this unit provides exceptional audio quality through OpenDuplex® technology and 16 kHz HD Voice. Despite its small footprint, it features a robust, vandal-resistant construction suitable for demanding outdoor or industrial conditions.
The OD1 B supports both SIP and IoIP® protocols, ensuring it can be integrated into a wide range of network systems while providing reliable, hands-free voice transmission for access control and emergency points.
Key Technical Specifications
| Feature | Specification |
| Model Number | OD1 B |
| Audio Quality | 16 kHz HD Voice, OpenDuplex® |
| Protocol | Hybrid (SIP / IoIP) |
| Color | Black |
| Microphone | Electret condenser microphone |
| Amplifier | Integrated Class-D (2.5 W) |
| Protection | Vandal-resistant, weather-protected |
| Inputs/Outputs | 2 Inputs / 2 Relay Outputs |
| Power Supply | PoE (IEEE 802.3af) |
Project Application
The OD1 B is optimized for discreet and high-reliability communication:
-
Modern Corporate Entrances: Provides a sophisticated black finish that complements contemporary dark-themed architectural facades and bollards.
-
Elevator and Lift Systems: Offers clear emergency communication in compact spaces where a sleek, modern aesthetic is preferred.
-
High-End Retail & Boutiques: Ideal for secure staff communication or customer assistance points in premium environments.
